Pump Flow:0-150 m3/h.
Head:0-240M;
Power:0.75 to 37 kw;
Speed:150~960 r/min;
Caliber:20~135mm;
Temperature: -15~200 degree centigrade.

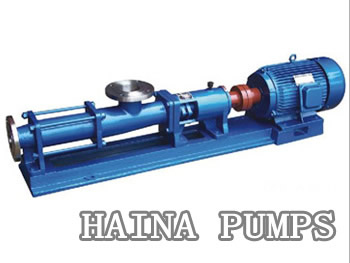

Stainless Steel Mono Screw Pumps Flow and Head data sheet:
| Model | Flow (m3/h) |
Head (Mpa) |
Speed (r/min) |
Motor (kw) |
NPSHr (m) |
Inlet (mm) |
Outlet (mm) |
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 4 | 25 | 25 |
| G20-2 | 1.2 | 1.5 | |||||
| G25-1 | 2 | 0.6 | 960 | 1.5 | 40 | 32 | |
| G25-2 | 1.2 | 2.2 | |||||
| G30-1 | 5 | 0.6 | 960 | 2.2 | 50 | 40 | |
| G30-2 | 1.2 | 3 | |||||
| G35-1 | 8 | 0.6 | 960 | 3 | 65 | 50 | |
| G35-2 | 1.2 | 4 | |||||
| G40-1 | 12 | 0.6 | 960 | 4 | 80 | 65 | |
| G40-2 | 1.2 | 5.5 | |||||
| G50-1 | 14 | 0.6 | 720 | 5.5 | 4.5 | 100 | 80 |
| G50-2 | 1.2 | 7.5 | |||||
| G60-1 | 22 | 0.6 | 720 | 11 | 5 | 125 | 100 |
| G60-2 | 1.2 | 15 | |||||
| G70-1 | 38 | 0.6 | 720 | 11 | 150 | 125 | |
| G70-2 | 1.2 | 18.5 | |||||
| G85-1 | 56 | 0.6 | 630 | 15 | 150 | 150 | |
| G85-2 | 1.2 | 30 | |||||
| G105-1 | 100 | 0.6 | 500 | 30 | 200 | 200 | |
| G105-2 | 1.2 | 55 | |||||
| G135-1 | 150 | 0.6 | 400 | 45 | 250 | 250 | |
| G135-2 | 1.2 | 90 |
