Position：Haina pumps > Oil Pumps > Self Priming Oil Transfer Pump CYZ-A

Self Priming Oil Transfer Pump CYZ-A

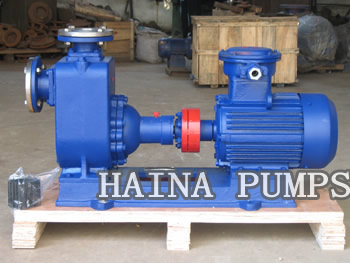

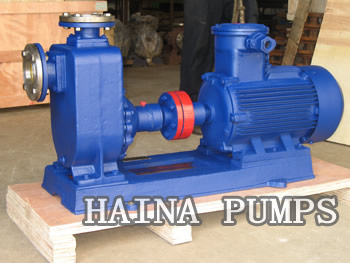

Self priming oil transfer pump CYZ-ASelf Priming Oil Pump

Pump type:Centrifugal oil pump
Flow:3~800M3/H
Drive type:Motor or diesel engine.
Pump Model:CYZ-A.
Inlet/Outlet:1″ 2″ 3″ 4″ 6″ 8″ 10″ 12″ 14″ flanged joint.
Pump material: cast iron/stainless steel/copper.
Self priming oil transfer pump used for diesel oil, gasoline transfer with cast iron pump body, bronze impeller, SS shaft, Explosion-Proof Motor.
It is suitable for pumping gasoline, diesel, kerosene and aviation gasoline at temperature between -20 – 80C. They are also widely used as discharge pumps for oil ships, oil tanks, oil reservoir or oil cargoes as well as for transporting water and sea water. When being equipped with corrosion resistant mechanical seals and stainless steel material, CYZ-A self-priming oil transfer pump can serve for transportation of chemical liquids.

Application Area
1.fuel pump is widely used totransport gasoline,kerosene,diesel oil ,oil for warehouse ,oil station ,oil tanker,dock,tank truck,airdrome ect.
2.Used in chemical industry ,pharmaceutics, brew-age,electroplate ,printing and dyeing,papermaking, electric power ,mine etc.
3.Suitable for Marine cargo pump, bilge pump, fire pump, ballast pump and cooling water circulation machine
4.Applicable to the oil industry, oil depot, oil tank truck land .

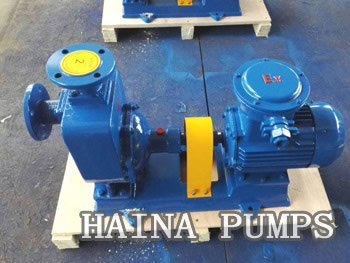

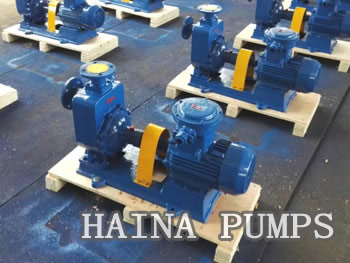

Self priming oil transfer pump 50CYZ-A-20CYZ-A Self priming oil transfer pumps
CHARACTERRISTIC
1.Simple structure,convenient operation and maintenance,stable working,hagh efficiency,long life,good self-priming etc are its main characteristic.
2.It can also be used as pump for cleaning off cabin in tanker and water supply of ship with high efficiency.
3.It’s made up of material of high quality.Seal is hard alloy mechanical seal.So the pumps have a long life.
4.It need not security valve in output pipeline and no bottom valve in suction valve insuction pipeline, so it perdigests pipeline system and improves working condition.

Self Priming Oil Transfer Pump Flow and Head Data Sheet

Model Flow

(m3/h)

 Head

(m)

 Suction head

(m)

 Speed

(r/min)

 Self priming capacity
(min/5m)		 Power

(kw)

 Ports size(mm)
40CYZ-A-40 10 40 6.5 2900 1.5 4 50
50CYZ-A-12 15 12 6.5 2900 2.4 1.5 50
50CYZ-A-20 18 20 6.5 2900 1.9 2.2 50
50CYZ-A-30 20 30 6.5 2900 1.5 4 50
50CYZ-A-35 14 35 6.5 2900 1.5 4 50
50CYZ-A-40 10 40 6.5 2900 1.5 4 50
50CYZ-A-50 12.5 50 6.5 2900 1.4 5.5 50
50CYZ-A-65 15 60 6.5 2900 1.3 7.5 50
50CYZ-A-75 20 75 6.5 2900 1.3 11 50
65CYZ-A-15 30 15 6.5 2900 2 3 65
65CYZ-A-32 25 32 6 2900 1.5 5.5 65
80CYZ-A-13 35 13 6 2900 3.4 3 80
80CYZ-A-17 43 17 6 2900 1.8 4 80
80CYZ-A-22 40 22 6 2900 1.9 5.5 80
80CYZ-A-25 50 25 6 2900 1.5 7.5 80
80CYZ-A-32 50 32 6 2900 1.5 7.5 80
80CYZ-A-55 60 55 6 2900 1.5 18.5 80
80CYZ-A-70 60 70 6 2900 1.2 22 80
100CYZ-A-20 100 20 6 2900 1.8 11 100
100CYZ-A-40 100 40 6 2900 1.8 22 100
100CYZ-A-40A 100 40 6 1450 1.5 22 100
100CYZ-A-65 100 65 6 2900 1.8 30 100
100CYZ-A-75 100 75 6 2900 1.8 30 100
150CYZ-A-55 170 55 5 2900 1.8 45 150
150CYZ-A-65 170 65 5 2900 1.3 55 150
150CYZ-A-80 160 80 5 2900 1.2 55 150
200CYZ-A-32 400 32 5 1450 2 55 200
200CYZ-A-63 280 63 5 1450 1.5 90 200
200CYZ-A-65 350 65 5 1450 1.5 75 250
250CYZ-A-32 550 32 5 1450 2 90 250
250CYZ-A-50 400 50 5 1450 2 90 250
300CYZ-A-50 500 50 5 1450 2 110 300
250CYZ-A-55 450 55 5 1450 2 110 250
250CYZ-A-75 400 75 5 1450 1.5 132 250
300CYZ-A-32 600 32 5 1450 2 90 300
300CYZ-A-55 550 55 5 1450 2 132 300
