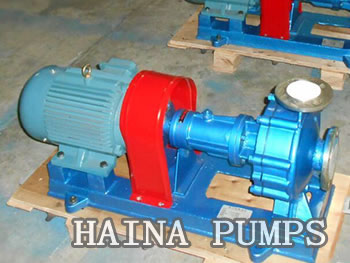

Hot oil pumps used for hot oil circulation,Flow range 1~400M3/h,temperature less then 400 degrees centigrade.The pump body is cast steel.

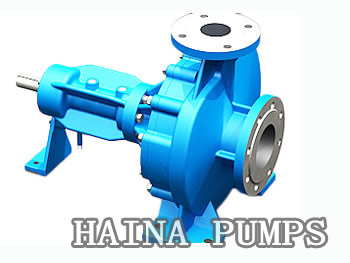

Haina pumps company produces the hot oil pumps type model is RY and BRY hot oil circulation pump, mainly for the hot oil circulation, pump body made of cast steel material, Flow is less than 400 cubic meters per hour pump speed is 2900 RPM , more than 350 cubic meters per hour is 1450 RPM speed low.Pump is mainly composed have pump body, impeller, pump cover, pump shaft, bearing, bearing gland, stents, oil seal, etc.
Installation mode: horizontal.
Connection mode: the pump and motor are connected directly by coupling.
Hot oil pumps / hot oil circulation pump data sheet:
| Model | Flow m3/h |
Head m |
Speed
r/min |
Motor | |
| kw | Model | ||||
| 20-20-100 | 1 | 20 | 2800 | 0.75 | Y80M1-2 |
| 20-20-125 | 1.5 | 22 | 2800 | 0.75 | Y80M1-2 |
| 25-25-160 | 3 | 27 | 2900 | 1.5 | Y90S-2 |
| 32-32-160 | 6 | 28 | 2900 | 1.5 | Y90S-2 |
| 40-25-160 | 10 | 28 | 2900 | 2.2 | Y90L-2 |
| 50-32-160 | 12.5 | 30 | 2900 | 3 | Y100L-2 |
| 50-32-200 | 18 | 40 | 2900 | 5.5 | Y132S1-2 |
| 50-32-200A | 16 | 32 | 2900 | 4 | Y112M-2 |
| 50-32-250 | 12.5 | 80 | 2900 | 11 | Y160M1-2 |
| 50-32-250A | 10 | 50 | 2900 | 7.5 | Y132S2-2 |
| 65-50-160 | 20 | 32 | 2900 | 5.5 | Y132S1-2 |
| 65-40-200 | 30 | 48 | 2900 | 7.5 | Y132S2-2 |
| 65-40-200A | 25 | 35 | 2900 | 5.5 | Y132S1-2 |
| 65-40-250 | 25 | 80 | 2900 | 15 | Y160M2-2 |
| 65-40-250A | 20 | 51 | 2900 | 7.5 | Y132S2-2 |
| 65-40-315 | 25 | 125 | 2900 | 30 | Y200L1-2 |
| 80-50-200 | 50 | 50 | 2900 | 15 | Y160M2-2 |
| 80-50-200A | 45 | 40 | 2900 | 11 | Y160M1-2 |
| 80-50-200B | 40 | 32 | 2900 | 7.5 | Y132S2-2 |
| 80-50-250 | 50 | 80 | 2900 | 22 | Y180M-2 |
| 80-50-250A | 43 | 60 | 29002900 | 18.5 | Y160L-2 |
| 80-50-315 | 50 | 125 | 2900 | 37 | Y225L2-2 |
| 80-50-315A | 45 | 100 | 2900 | 30 | Y200L1-2 |
| 100-65-200 | 100 | 50 | 2900 | 22 | Y180M-2 |
| 100-65-200A | 94 | 44 | 2900 | 22 | Y180M-2 |
| 100-65-250 | 100 | 80 | 2900 | 37 | Y200L2-2 |
| 100-65-250A | 95 | 72 | 2900 | 37 | Y200L2-2 |
| 100-65-315 | 100 | 125 | 2900 | 75 | Y280S-2 |
| 100-65-315A | 95 | 113 | 2900 | 55 | Y250M-2 |
| 125-100-200 | 200 | 50 | 2900 | 45 | Y225M-2 |
| 125-100-200A | 178 | 40 | 2900 | 37 | Y200L2-2 |
| 125-100-250 | 200 | 70 | 2900 | 55 | Y250M-2 |
| 125-100-250A | 190 | 63 | 2900 | 55 | Y250M-2 |
| 150-150-200 | 350 | 50 | 2900 | 75 | Y280S-2 |
