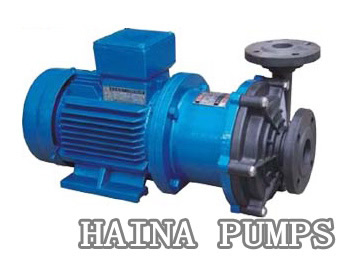

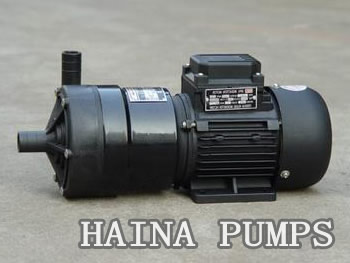

Plastic magnetic drive pump products Overview:
CQF series plastic magnetic pump material: enhanced polypropylene(engineering plastic) is the application of modern magnetics principles, the working principle of magnetic couplings for centrifugal pump of new products, with static seal instead of dynamic seal, magnetic pump flow components of pump in a completely sealed state.
The magnetic pump USES corrosion resistant, high-strength engineering plastics, steel jade ceramics and stainless steel as manufacturing materials, so it has good corrosion resistance and can protect the transmission medium from pollution.
CQF magnetic drive pump has compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient maintenance.
Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, national defense, scientific research institutions, metallurgy, dye pumping units such as acid, alkali, oil precious liquid, venom, volatile liquid, and circulating water to form a complete set of equipment, filter machine.
Especially easy to leak, flammable, explosive liquid pumping.
The explosion-proof electric motor USES this pump to be more ideal equipment.
CQF Series Plastic Magnetic Drive Pumps Flow and Head Data Sheet:
| Model | caliber | Flow
(m3/h) |
Head
(m) |
Motor
(kW) |
|
| Inlet(mm) | Outlet(mm) | ||||
| 10CQF-3 | 10 | 8 | 1.14 | 3 | 0.01 |
| 14CQF-5 | 14 | 10 | 1.2 | 5 | 0.12 |
| 16CQF-8 | 15 | 15 | 1.5 | 8 | 0.12 |
| 20CQF-12 | 25 | 18 | 3 | 12 | 0.37 |
| 25CQF-15 | 25 | 20 | 6.6 | 15 | 1.1 |
| 32CQF-15 | 32 | 25 | 6.6 | 15 | 1.1 |
| 32CQF-25 | 32 | 25 | 6.6 | 25 | 1.1 |
| 40CQF-20 | 40 | 32 | 10.8 | 20 | 2.2 |
| 50CQF-25 | 50 | 40 | 14.4 | 25 | 4 |
| 50CQF-32 | 50 | 40 | 13.2 | 32 | 4 |
| 65CQF-25 | 65 | 50 | 25 | 25 | 4 |
| 65CQF-32 | 65 | 50 | 25 | 32 | 5.5 |
