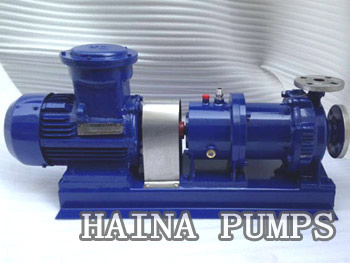

CQB-G High temperature magnetic drive pump performance:
Flow range:3.2L/min～100L/min
Head range:20m～80m
Motor:1.5kw～55kw
CQB-G High temperature magnetic pump model implication:
Example:CQB50-32-160G
CQB——-magnetic drive centrifugal pump
50———–Pump inlet(mm)
32———Pump outlet(mm)
160———pump impeller diameter(mm)
G———High-temperature Type
| Model | Diameter | Flow
(m3/h) |
Head
(m) |
(NPSH) | Motor
(KW) |
Speed
(r/min) |
|
| Inlet
(mm) |
Outlet
(mm) |
||||||
| CQB32-20-125G | 32 | 20 | 3.2 | 20 | 4.5 | 1.5 | 2900 |
| CQB32-20-160G | 32 | 20 | 3.2 | 32 | 4.5 | 2.2 | 2900 |
| CQB40-25-125G | 40 | 25 | 6.3 | 20 | 4.5 | 2.2 | 2900 |
| CQB40-25-160G | 40 | 25 | 6.3 | 32 | 4.5 | 3 | 2900 |
| CQB40-25-200G | 40 | 25 | 6.3 | 50 | 4.5 | 5.5 | 2900 |
| CQB50-32-125G | 50 | 32 | 12.5 | 20 | 4.0 | 3 | 2900 |
| CQB50-32-160G | 50 | 32 | 12.5 | 32 | 4.0 | 4 | 2900 |
| CQB50-32-200G | 50 | 32 | 12.5 | 50 | 4.0 | 7.5 | 2900 |
| CQB50-32-250G | 50 | 32 | 12.5 | 80 | 4.0 | 15 | 2900 |
| CQB65-50-125G | 65 | 50 | 25 | 20 | 4.0 | 5.5 | 2900 |
| CQB65-50-160G | 65 | 50 | 25 | 32 | 4.0 | 7.5 | 2900 |
| CQB65-40-200G | 65 | 40 | 25 | 50 | 4.0 | 15 | 2900 |
| CQB65-40-250G | 65 | 40 | 25 | 80 | 4.0 | 22 | 2900 |
| CQB80-65-125G | 80 | 65 | 50 | 20 | 3.5 | 7.5 | 2900 |
| CQB80-65-160G | 80 | 65 | 50 | 32 | 3.5 | 15 | 2900 |
| CQB80-50-200G | 80 | 50 | 50 | 50 | 3.5 | 22 | 2900 |
| CQB80-50-250G | 80 | 50 | 50 | 80 | 3.5 | 37 | 2900 |
| CQB100-80-125G | 100 | 80 | 100 | 20 | 3.2 | 15 | 2900 |
| CQB100-80-160G | 100 | 80 | 100 | 32 | 3.2 | 22 | 2900 |
| CQB100-65-200G | 100 | 65 | 100 | 50 | 3.2 | 37 | 2900 |
| CQB100-65-250G | 100 | 65 | 100 | 80 | 3.2 | 55 | 2900 |
