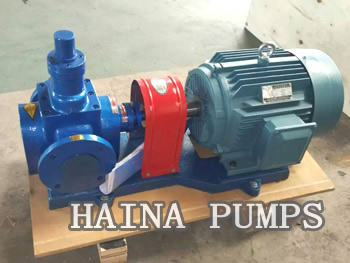

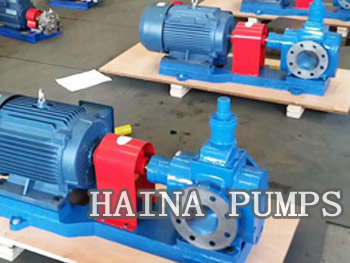

We produce cast iron and stainless steel YCB gear pump, the flow range 1 to 60 cubic meters per hour, discharge pressure, 0.6 to 2.5 MPA.Can be used to transport oil or corrosive liquid.YCB oil pump is equipped with safety valve for overload protection.Sealing means has two kinds of packing seal and mechanical seal, pump base under conventional cast iron material is qualitative;If delivery room temperature solidification of liquid, then please select YCB the gear pump with insulation jacket.
YCB gear pump structure: the YCB arc gear pump by the pump body, pump cover, seal, steel cover, the relief valve and so on, simple structure and durable.YCB gear pump is suitable for conveying containing no solid particles and fibers, non-corrosive, temperature is not higher than 200 ℃, the viscosity of 5 x 10-6-1.5 x 10-3 m2 / s (5 to 1500 CST) nature of lubricating oil or other liquids, such as lubricating oil, and used in hydraulic transmission systems.
Traffic: 0.6 to 60 cubic/hour, 0.6 2.5 MPA pressure.Equipped with safety valve as overload protection, total reflux pressure relief valve for 5 times the rated discharge pressure of pump.
YCB gear pump USES
In the oil system can be used as a transport, booster pump;
In the fuel system can be used as a transport, pressure, jet fuel pump;
In the hydraulic drive system can be used as a hydraulic pump of hydraulic power;
In all industrial areas, can be used as lubricating oil pump;
YCB gear pump structure characteristics
This series gear pump are mainly gear, shaft, pump body, valve, shaft end seal.Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve.In all parts of the lubrication pump are pump work automatically to achieve using the output media.
YCB gear pump is equipped with safety valve as overload protection, the total reflux pressure relief valve is rated pump out pressure of 1.5 times, also can allow discharge pressure range according to actual needs and adjust.But note that this cannot be a long-term work pressure reducing valve, relief valve can be installed in the piping shall be separately when necessary.
YCB gear pump data sheet
| Model | Flow | Speed r/min |
outlet pressure Mpa |
NPSH r m |
Efficiency η % |
Motor | ||
| m3/h | Hz | KW | Model | |||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
| YCB0.6-2.5 | 0.6 | 910 | 2.5 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
| YCB1.6-2.5 | 1.6 | 940 | 2.5 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
| YCB3.3-2.5 | 3.3 | 960 | 2.5 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
| YCB4-2.5 | 4.0 | 960 | 2.5 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
| YCB8-2.5 | 8.0 | 970 | 2.5 | 7.0 | 75 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | ||||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB10-2.5 | 10.0 | 970 | 2.5 | 7.0 | 76 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| 18.0 | 1770 | 60 | 18.5 | Y180M-4 | ||||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
| YCB60-0.6 | 60.0 | 1470 | 0.6 | 5.5 | 72 | 50 | 30 | Y180L-4 |
| YCB80-0.6 | 80.0 | 980 | 0.6 | 5.5 | 72 | 50 | 30 | Y205M-6 |
Above is YCB gear pump flow data table, please choose the appropriate type.We will provide each customer with high quality and low price products!Are all in stock supply.
