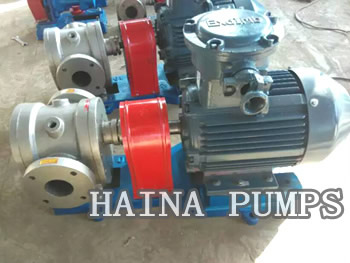

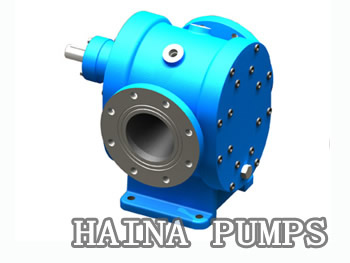

YCB-G Gear Pump

Performance scope
1:temperature: -10~350
2:viscosity : 5~1500cst
3:Model:YCB0.6-0.6G YCB1.6-0.6G YCB3.-0.6G YCB-0.6G YCB8-0.6G YCB10-0.6G YCB20-0.6G YCB25-0.6G YCB30-0.6G YCB40-0.6G YCB50-0.6G

YCB-G gear pump brief introduction
YCB-G gear pump used to transfer different medium, such as heavy oil, asphalt, resin, detergent and glue, which not includes solid particles and the temperature not higher than 350℃, with solidifying character under the normal temperature. It also applies to the site with heat-insulated requirement in the process technology and outdoors installation at very cold area.

This series of heat insulation gear pump belongs to external gear pump. The tooth form is composite formed by arc and sine curve .It could transfer many kinds of medium with steady output flow and pressure. There are heat insulating jacket and inlet and outlet joints on the pump casing, so it could adopt the media, such as heatconducting oil, steam .hot water and cold water to heat, keep warm and cooling the transferred medium and pump. When the viscosity of transferred medium is larger than 1500cSt, speed should be reduced.

YCB-G gear pump Application scope
1.Heavy oil industry
2.Asphalt industry
3.Resin industry
4.Detergent industry
5.Glues industry
