Position：Haina pumps > Gear Pumps > YCB-C Explosion-proof Gear Pump

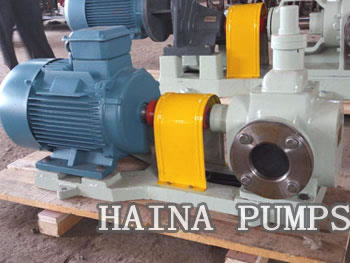

YCB-C Explosion-proof Gear Pump

YCB-C Explosion-proof Gear PumpPump body:cast iron;
Gear:copper;
Motor:explosion proof motor;
Flow:0.6~60M3/H;
Head:0.6~1.6MPA;
YCB-C explosion proof gear pump is mainly used for various kinds of mechanical equipment transmission lubricating oil, diesel, gasoline, etc., and is suitable for conveying viscosity of 5~1500CST, the temperature is below 300 ℃ with lubrication oil.It is mainly used to transport gasoline, diesel, benzene, alcohol, pesticide and other inflammable and easily corrosive media.

Model Flow Speed
r/min		 outlet pressure
Mpa		 NPSH
r m		 Efficiency Motor
m3/h Hz KW Model
YCB-C-0.6-0.6 0.6 910 0.6 5.5 32 50 0.75 Y90S-6
1.0 1390 50 0.75 Y80L2-4
0.7 1130 60 0.75 Y90S-6
1.2 1710 60 0.75 Y80L2-4
YCB-C-0.6-2.5 0.6 910 2.5 7.0 70 50 1.1 Y90L-6
1.0 1400 50 1.5 Y90L-4
0.7 1130 60 1.1 Y90L-6
1.2 1710 60 1.1 Y90S-4
YCB-C-1.6-0.6 1.6 910 0.6 5.5 42 50 0.75 Y90S-6
2.5 1400 50 1.1 Y90S-4
1.9 1130 60 1.1 Y90L-6
3.0 1710 60 1.5 Y90L-4
YCB-C-1.6-2.5 1.6 940 2.5 7.0 71 50 2.2 Y112M-6
2.5 1440 50 4 Y112M-4
1.9 1150 60 2.2 Y112M-6
3.0 1750 60 4 Y112M-4
YCB-C-3.3-0.6 3.3 940 0.6 5.0 60 50 1.5 Y100L-6
5.0 1420 50 2.2 Y100L1-4
4.0 1150 60 1.5 Y100L-6
6.0 1730 60 2.2 Y100L1-4
YCB-C-3.3-2.5 3.3 960 2.5 7.0 72 50 5.5 Y132M2-6
5.0 1440 50 7.5 Y132M-4
4.0 1170 60 4 Y132M1-6
6.0 1750 60 7.5 Y132M-4
YCB-C-4-0.6 4.0 940 0.6 5.0 60 50 1.5 Y100L-6
6.0 1420 50 2.2 Y100L1-4
4.8 1150 60 2.2 Y112M-6
7.2 1730 60 3 Y100L2-4
YCB-C-4-2.5 4.0 960 2.5 7.0 72 50 5.5 Y132M2-6
6.0 1440 50 7.5 Y132M-4
4.8 1170 60 5.5 Y132M-6
7.2 1750 60 7.5 Y132M-4
YCB-C-8-0.6 8.0 960 0.6 5.0 61 50 3 Y132S-6
12.0 1440 50 5.5 Y132S-4
9.6 1170 60 4 Y132M1-6
14.4 1750 60 5.5 Y132S-4
YCB-C-8-2.5 8.0 970 2.5 7.0 75 50 11 Y160L-6
12.0 1460 50 15 Y160L-4
9.6 1170 60 11 Y160L-6
14.4 1760 60 15 Y160L-4
YCB-C-10-0.6 10.0 960 0.6 5.0 62 50 4 Y132M1-6
15.0 1440 50 5.5 Y132S-4
12.0 1170 60 5.5 Y132M2-6
18.0 1750 60 7.5 Y132M-4
YCB-C-10-2.5 10.0 970 2.5 7.0 76 50 11 Y160L-6
15.0 1470 50 15 Y160L-4
12.0 1170 60 11 Y160L-6
18.0 1770 60 18.5 Y180M-4
YCB-C-20-0.6 20.0 970 0.6 5.0 68 50 7.5 Y160M-6
24.0 1170 60 7.5 Y160M-6
YCB-C-25-0.6 25.0 970 0.6 5.5 69 50 11 Y160L-6
30.0 1170 60 11 Y160L-6
YCB-C-30-0.6 30.0 970 0.6 5.5 70 50 11 Y160L-6
36.0 1170 60 11 Y160L-6
YCB-C-40-0.6 40.0 970 0.6 5.5 72 50 15 Y180L-6
48.0 1180 60 15 Y180L-6
YCB-C-50-0.6 50.0 970 0.6 5.5 72 50 22 Y200L2-6
60.0 1180 60 22 Y200L2-6
YCB-C-60-0.6 60.0 1470 0.6 5.5 72 50 30 Y180L-4
YCB-C-80-0.6 80.0 980 0.6 5.5 72 50 30 Y205M-6
