Scope of application

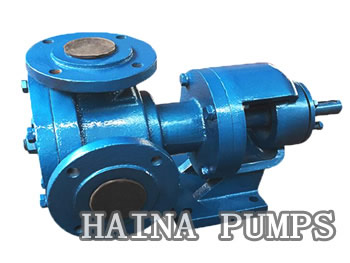

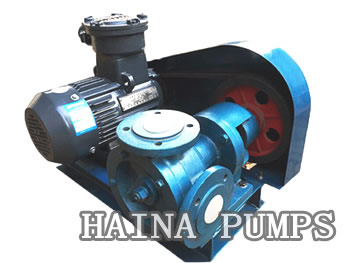

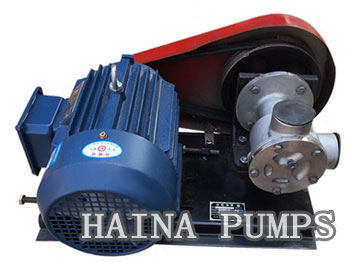

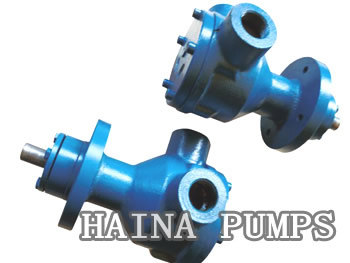

NCB Internal Gear Pump Suitable for conveying all kinds of light and volatile gases until heavy, viscous liquid, even semi-solid liquid.It is widely used in petroleum, chemical, grease, coating and other industries.
Driving mode: pulley/gear motor.
| Model | caliber | Flow m3/h |
Head MPa |
suction MPa |
Speed | Motor | |
| Model | KW | ||||||
| NCB1.2/0.3 | G1″ | 1.2 | 0.3 | 0.03 | 500 | Y 90 L-6 | 1.1 |
| NCB1.8/0.3 | G1 1/2″ | 1.8 | 0.03 | 500 | Y 100 L-6 | 1.5 | |
| NCB3/0.3 | 3 | 700 | Y 132 S-6 | 1.5 | |||
| NCB6/0.5 | DN 40 | 6 | 0.5 | 0.05 | 500 | Y 100 L2-4 | 3 |
| NCB8/0.5 | 8 | 670 | 3 | ||||
| NCB12/0.5 | DN 50 | 12 | 0.5 | 290 | Y 132 M1-6 | 4 | |
| NCB16/0.5 | 16 | 380 | Y 132 M2-6 | 5.5 | |||
| NCB20/0.5 | 20 | 460 | Y 132 M-4 | 7.5 | |||
| NCB12/0.7 | DN 80 | 12 | 0.7 | 0.08 | 220 | Y 160 M-6 | 7.5 |
| NCB18/0.7 | 18 | 310 | Y 160 L-6 | 11 | |||
| NCB24/0.5 | 24 | 0.5 | 420 | Y 160 M-4 | 11 | ||
| NCB30/0.5 | 30 | 520 | Y 160 L-4 | 15 | |||
| NCB15/1.5 | DN 100 | 15 | 1.5 | 0.08 | 250 | Y 180 L-6 | 15 |
| NCB20/0.7 | 20 | 0.7 | 300 | Y 160 L-6 | 11 | ||
| NCB25/0.7 | 25 | 0.7 | 340 | Y 180 L-6 | 15 | ||
| NCB35/0.5 | 35 | 0.5 | 480 | Y 160 L-4 | 15 | ||
| NCB40/0.5 | DN 125 | 40 | 0.5 | 0.08 | 230 | Y 200 L1-6 | 18.5 |
| NCB50/0.5 | 50 | 290 | Y 200 L2-6 | 18.5 | |||
| NCB60/0.5 | 60 | 350 | Y 200 L2-6 | 22 | |||
| NCB70/0.5 | 70 | 410 | Y 225 M-6 | 30 | |||
| NCB80/0.5 | DN 150 | 80 | 0.5 | 0.08 | 250 | Y 250 M-6 | 30 |
| NCB100/0.5 | 100 | 300 | Y 280 S-6 | 45 | |||
| NCB120/0.5 | 120 | 360 | Y 280 M-6 | 55 | |||
