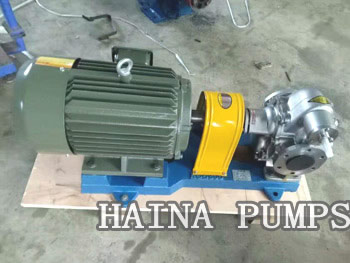

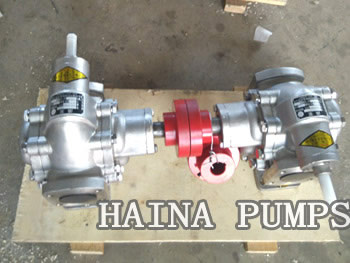

KCB SS Gear Pumps

KCB stainless steel gear pump Flow range:≤324m3/h.
Working pressure:≤ 1.45MPa.
Speed range:≤ 1450RPM.
Temperature:≤150 ℃
Viscosity range:≤ 1500mm2/s.
Sealed form: mechanical seal packing seal.
Pump material: stainless steel(304 316 316L)
Applicable scope: petroleum, chemical industry, coating, building materials, hardware, ship, grease, medicine, dye, food and other industries.

KCB SS Gear Pumps Data Sheet:

Model	Flow		outlet pressure Mpa	NPSHrm	Inlet/Outletmm	Speed	Motor kw
Model	m3/h	L/min	outlet pressure Mpa	NPSHrm	Inlet/Outletmm	Speed	Motor kw
KCB-18.3	1.1	18.3	1.45	5	G3/4“	1400	1.5
KCB-33.3	2	33.3	1.45	5	G3/4“	1420	2.2
KCB-55	3.3	55	0.33	5	G1″	1400	1.5
KCB-83.3	5	83.3	0.33	5	G1/2“	1420	2.2
KCB-135	8	135	0.33	3	Φ50	1440	4
KCB-200	12	200	0.33	3	Φ50	1440	4
KCB-300	18	300	0.36	3	Φ70	960	5.5
KCB-483.3	29	483.3	0.36	3	Φ70	1440	7.5
KCB-633	38	633	0.28	3	Φ100	970	11
KCB-960	58	960	0.28	3	Φ100	1470	18.5
KCB-1200	72	1200	0.6	2	Φ150	740	37
KCB-1600	96	1600	0.6	2	Φ150	980	45
KCB-1800	110	1800	0.6	2	Φ200	740	55
KCB-2500	150	2500	0.6	2	Φ200	980	75
KCB-3800	230	3800	0.6	2	Φ250	990	110
KCB-5400	325	5400	0.6	2	Φ250	990	160
KCB-9600	570	9600	0.6	2	Φ350	990	250
