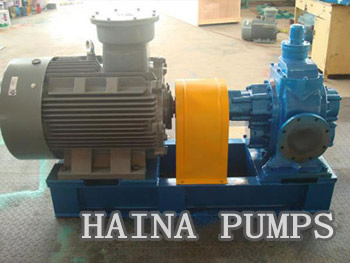

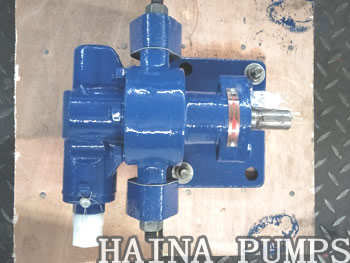

KCB-C Explosion-proof Gear Pump

KCB-C Explosion-proof Gear PumpTCB KCB-C Explosion-proof Gear Pumps China Haina pumps

Pump body:cast iron
Gear:copper
Motor:explosion proof motor.
KCB-C explosion proof gear pump is mainly used for various kinds of mechanical equipment transmission lubricating oil, diesel, gasoline, etc., and is suitable for conveying viscosity of 5~1500CST, the temperature is below 300 ℃ with lubrication oil.It is mainly used to transport gasoline, diesel, benzene, alcohol, pesticide and other inflammable and easily corrosive media.
Model:KCB-C-18.3 KCB-C-33.3 KCB-C-55 KCB-C-83.3 KCB-C-135 KCB-C-200 KCB-C-300 KCB-C-483.3 KCB-C-633 KCB-C-960 KCB-C-1200 KCB-C-1600 KCB-C-2500 KCB-C-3800 KCB-C-5400 KCB-C-7600 KCB-C-9600

Model Flow outlet pressure
Mpa		 NPSHr

m

 Inlet/Outlet

mm

 Speed Motor
kw
m3/h L/min
KCB-C-18.3 1.1 18.3 1.45 5 G3/4“ 1400 1.5
KCB-C-33.3 2 33.3 1.45 5 G3/4“ 1420 2.2
KCB-C-55 3.3 55 0.33 5 G1″ 1400 1.5
KCB-C-83.3 5 83.3 0.33 5 G1/2“ 1420 2.2
KCB-C-135 8 135 0.33 3 Φ50 1440 4
KCB-C-200 12 200 0.33 3 Φ50 1440 4
KCB-C-300 18 300 0.36 3 Φ70 960 5.5
KCB-C-483.3 29 483.3 0.36 3 Φ70 1440 7.5
KCB-C-633 38 633 0.28 3 Φ100 970 11
KCB-C-960 58 960 0.28 3 Φ100 1470 18.5
KCB-C-1200 72 1200 0.6 2 Φ150 740 37
KCB-C-1600 96 1600 0.6 2 Φ150 980 45
KCB-C-1800 110 1800 0.6 2 Φ200 740 55
KCB-C-2500 150 2500 0.6 2 Φ200 980 75
KCB-C-3800 230 3800 0.6 2 Φ250 990 110
KCB-C-5400 325 5400 0.6 2 Φ250 990 160
KCB-C-9600 570 9600 0.6 2 Φ350 990 250
