LQ3G Series Three Screw Asphalt Pumps

Category：Asphalt Pumps
views(1529)

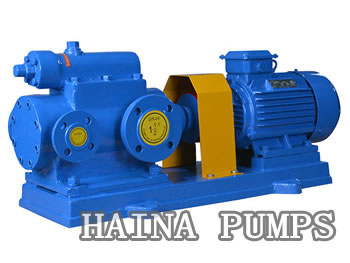

LQ3G Series Three Screw Asphalt Pumps

LQ3G Series Three Screw Asphalt Pumps product features:

(1) the medium is straight and continuous, without stirring or pulsation;
(2) small vibration and low noise;
(3) high pressure and high efficiency;
(4) simple structure and convenient disassembly;
(5) mild wear and long life.

LQ3G Series Three Screw Asphalt Pumps Parameters:

Flow range:2.4M3/h~240M3/h.
Lift range:60m~250m.
Motor power:1.1kw~90kw.

HAINA LQ3G asphalt pump data sheet:

LQ3G Model	Flow		Head (MPa)	Speed (r/min)	Motor (KW)	NPSHR (m)
LQ3G Model	(m3/h)	(L/min)	Head (MPa)	Speed (r/min)	Motor (KW)	NPSHR (m)
45×3-36	2.8	46	0.6	950	1.1	5
	2.7	45	1.0		1.5
	25	42	1.6		2.2
	2.4	40	2.5		4
	4.2	70	0.6	1450	1.5	5
	4.0	66	1.0		2.2
	3.8	63	1.6		3
	3.5	58	2.5		5.5
45×2-46	4.2	70	0.6	950	1.5	5
	4.0	66	1.0	950	2.2
	6.3	105	0.6	1450	2.2
	6.1	101	1.0	1450	3
54×2-46	8.0	133	0.8	970	3	5
	8.0	133	1.0	970	2.2
	14	233	0.6	1450	4
	14	233	4.0	1450	5.5
62×2-43	8.58	143.4	0.6	950	3	5
	8.25	137.9	1.0	950	4
	13.1	218.9	0.6	1450	4
	12.6	210.5	1.0	1450	7.5
62×2-46	9.8	163	0.8	950	4	5
	9.5	158	1.0	950	5.5
	15.1	251	0.6	1450	5.5
	14.6	243	1.0	1450	7.5
80×2-36	17.0	283.3	0.8	950	7.5	5.5
	25.7	428	0.6	1450	7.5
	25.0	417	1.0	1450	11
80×2-46	23.9	398.5	0.6	950	7.5	5.5
	23.1	386.3	1.0	950	11
	36.6	610.3	0.6	1450	11
	35.7	594.5	1.0	1450	15
80×2-51	27.5	485.5	0.6	950	11	5.5
	26.9	448.3	1.0	950	15
	41.9	698.3	0.6	1450	11
	41.0	684.1	1.0	1450	18.5
90×2-36	24.2	403.5	0.6	960	7.5	5.5
	23.6	394.6	1.0	960	11
	37	615.9	0.6	1450	11
	36.1	602.4	1.0	1450	15
90×2-42	28.2	470.9	0.6	950	11	5.5
	27.5	457.6	1.0	950	15
	43.1	718.8	0.6	1450	15
	41.9	698.5	1.0	1450	18.5
90×2-46	34.0	566.7	0.8	950	11	5.5
	52.6	875.4	0.6	1450	15
	52.0	866	0.8		18.5
	51.4	856.1	1.0		22
100×2-46	48.0	800	0.8	950	15	5.5
	72.7	1212	0.6	1450	18.5
	72.0	1200	0.8		22
	71.2	1187	1.0		30
100×2-51	56.9	948.9	0.6	950	15	5.5
	55.7	928.6	1.0	950	30
	86.9	1448.3	0.6	1450	22
	85.0	1417.2	1.0	1450	37
110×2-46	60.9	1015	0.6	950	18.5	5.5
	58.9	951.7	1.0	950	30
	96.7	1611	0.6	1450	30
	94.6	1577	1.0	1450	45
120×2-42	67.9	1131	0.6	950	18.5	5.5
	65.4	1090	1.0	950	30
	108	1802	0.6	1450	30
	105	1760	1.0	1450	45
120×2-46	79.6	1327	0.6	950	22	5.5
	77.2	1285	1.0	950	37
	126	2101	0.6	1450	37
	123	2059	1.0	1450	55
150×2-46	158	2640	0.6	950	45	5.5
	154	2582	1.0	950	75
	241.7	4029.7	0.6	1450	75
	236.5	3942.2	1.0	1450	90
