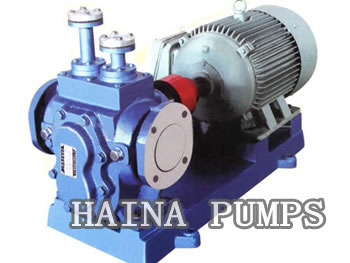

Gear Type Asphalt Pump RCB Series

RCB Gear Type Asphalt Pump Specification:

Flow Capacity:1-324m³/h
Temperature:≤250 degrees
Viscosity:5-1500cst
Pressure:≤0.8Mpa
The gear pump body of the pump is provided with a hollow interlayer which is provided with an inlet and outlet flange, which can be used for heating, heat preservation and cooling of the liquid and the pump, such as heat conducting oil, steam and hot water. When the transmission medium viscosity is greater than 1500cSt, should be used to reduce the transmission mode. Under normal circumstances, the use of pumps and motor love transmission.

Model	Flow Capacity		Discharge Pressure Mpa	Suction Vacuum m	Diameter mm	Motor
	M3/h	L/min				KW	Model
RCB-1	1	16.6	0.36	3	25	1.5	Y90L-4
			0.8
RCB-2	2	33.3	0.36		25	1.5	Y90L-4
			0.8			2.2	Y100L1-4
RCB-3	3	50	0.36		25	1.5	Y100L-6
			0.8			2.2	Y112M-6
RCB-5	5	83.3	0.36		40	2.2	Y100L-4
			0.8			4	Y112M-4
RCB-6	6	100	0.36		40	2.2	Y100L-4
			0.8			4	Y112M-4
RCB-8	8	133	0.36		50	4	Y132M1-6
			0.8			5.5	Y132M2-6
RCB-10	10	167	0.36		50	4	Y112M-4
			0.8			5.5	Y132S-4
RCB-12	12	200	0.36		55	4	Y132M-6
			0.8			5.5	Y132M2-6
RCB-18	18	300	0.36		55	5.5	Y132S-4
			0.8			7.5	Y132M-4
RCB-18	18	300	0.36		70	5.5	Y132M2-6
			0.8			7.5	Y160M-6
RCB-29	29	483.3	0.36		70	7.5	Y132M-4
			0.8			11	Y160M-4
RCB-38	38	633	0.36		100	11	Y160L-6
			0.8			15	Y180L-6
RCB-58	58	960	0.36		100	18.5	Y180M-4
			0.8			22	Y180L-4
RCB-45	45	750	0.36		100	18.5	Y200L-6
			0.8			30	Y225M-6
RCB-65	65	1083	0.36		100	30	Y200L-4
			0.8			37	Y200L-4
RCB-72	72	1200	0.28		150	37	Y280S-8
RCB-96	96	1600	0.28		150	45	Y280S-6
RCB-110	110	1800	0.28		200	55	Y315S-8
RCB-150	150	2500	0.28		200	75	Y315S-6
RCB-228	228	3800	0.28		250	90	Y315L-8
RCB-324	324	5400	0.28		250	110	Y315L-6

RCB Gear Type Asphalt Pump Specification:
