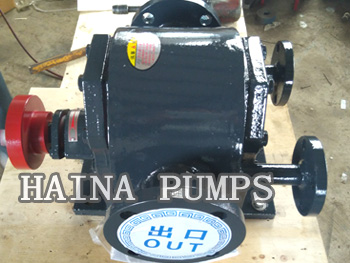

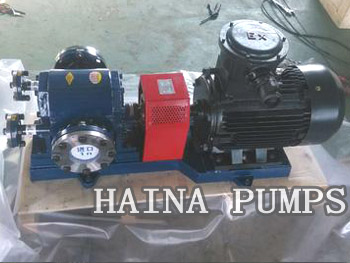

GA series gear asphalt pump made of high technology.Longer service life.higher temperature, Gear and shaft is made of alloy steel, the hardness is high;Applicable temperature: less than 380 degrees Celsius;
| Type | Calibermm | Flow | dischargepressure
Mpa |
Speedr/min | Motor | |
| L/min | KW | Motor type | ||||
| GA-33/0.6 | 25 | 33 | 0.6 | 1000 | 1.5 | Y100L-6 |
| GA-50/0.6 | 25 | 50 | 0.6 | 1500 | 2.2 | Y100L-4 |
| GA-80/0.6 | 40 | 80 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-125/0.6 | 40 | 125 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-125/0.6 | 50 | 125 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-200/0.6 | 50 | 200 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-300/0.6 | 80 | 300 | 0.6 | 1000 | 7.5 | 160M-6 |
| GA-300/0.4 | 80 | 300 | 0.4 | 1000 | 5.5 | 132M-6 |
| GA-480/0.4 | 80 | 480 | 0.4 | 1500 | 7.5 | 132M-4 |
| GA-480/0.6 | 80 | 480 | 0.6 | 1500 | 11 | 160M-4 |
| GA-630/0.4 | 100 | 630 | 0.4 | 1000 | 11 | 160L-6 |
| GA-960/0.4 | 100 | 960 | 0.4 | 1500 | 18.5 | 180M-4 |
